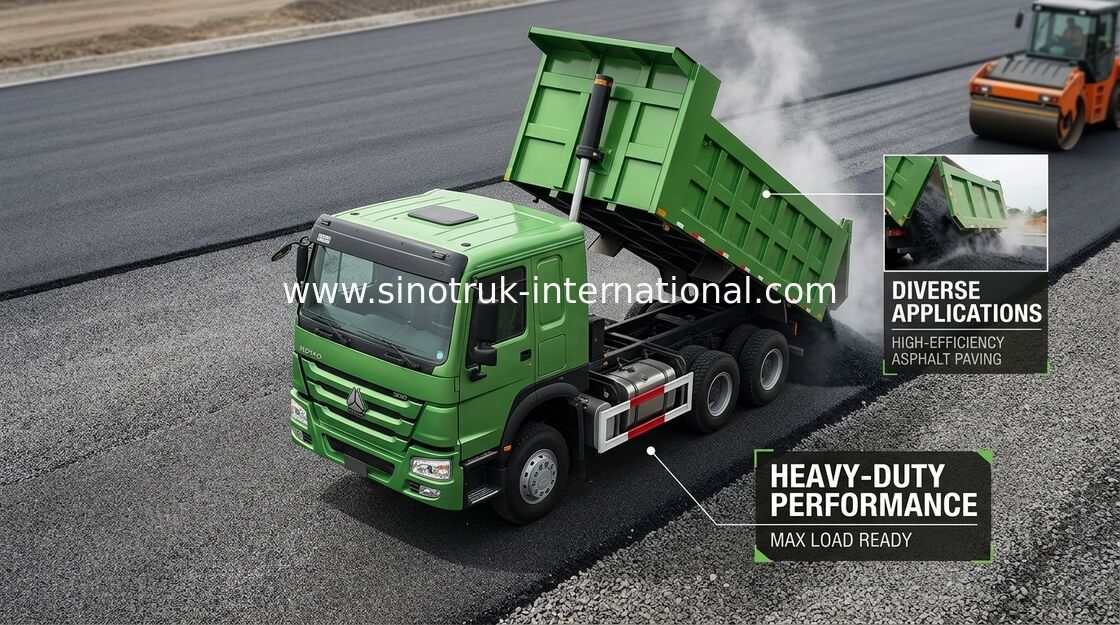

SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck

SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck

  • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
  • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
  • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
  • SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31 tons 28CBM Commercial Dump Truck
جزئیات محصول:
Place of Origin: China
نام تجاری: SINOTRUK HOWO
گواهی: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317N3567W
پرداخت:
Minimum Order Quantity: 1 Unit
قیمت: USD45000-USD48000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
مخاطب
توضیحات محصول جزئیات
Product Name: Tipper Dump Truck Model: ZZ3317N3567W
Drive type: LHD 8X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo body: 7300*2300*1500mm
Loading capacity: 40-60tons
برجسته:

heavy dump truck,sinotruk howo dump truck

,

sinotruk howo dump truck

SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31tons 28CBM for Mining business



Description:



SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31tons 28CBM for Mining business

In the painting workshop, the reporter through the big bright glass, see the process of painting production line operation. According to the introduction, this painting production line investment of up to 250 million yuan, the vehicle cab recognition system can realize automatic identification, information statistics management and finish the whole process of separation, automatic production line monitoring management information system. And the joint production scheduling management system, the automation level is higher.



"This line reflects the green, energy saving, environmental protection, the concept of health." the paint shop responsible person told reporters that the characteristics of the painting line is spraying high speed, wide range, excellent quality, high utilization rate of coating pretreatment. The non phosphorus degreasing agent and low residue phosphating agent, the coating of phosphorus pollution the lowest. The application of environmental friendly electrophoretic coating, large angle combination of Japanese blessing fixture swing, can ensure good anti-corrosion performance of the cab. The inside and outside the multi-stage filtration countercurrent washing process, realize the efficient recycling and cleaning water electrophoretic paint near zero pollution emissions.





Specification:



SINOTRUK HOWO Dump Truck Chassis 371HP 8X4 LHD 31tons 28CBM for Mining business

Model ZZ3317N3567W
Drive Type 8×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 1800+3500+1350(mm)
Overall dimension 10445×2496×3450(mm)
Cargo body

7500×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 15120(Kg)
Gross weight 31000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1)usually choose the standard cargo body structure
2)using the good quality steel plate, make it has a long service life
3)The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and  running efficiency.
4)excellant apperance of cabin, safety, reliable

5)competive price, cost-effective
6)quick and efficient spare parts supply bring you more convenient

7)fast delivery time, we can arange production according to your needs exactly and

quickly

8) professional import and export dealing precedure, make customs clearance more high efficiency

9)low fuel consumption
10) strong enough engine
11)with all kinds of truck model, which can fulfil your requirements
12)the key parts adopt the world's top technology products
13)based on strong technical support and top level technology make the trucks with high

quality and more reliable
