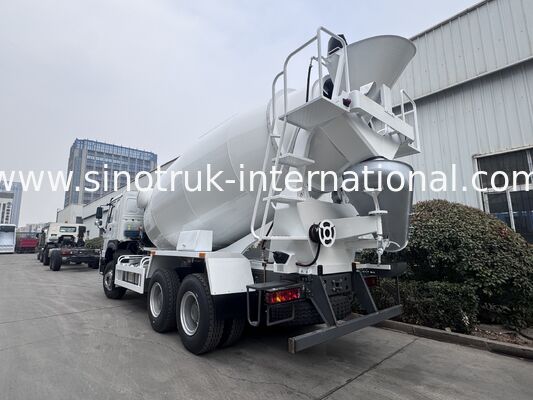

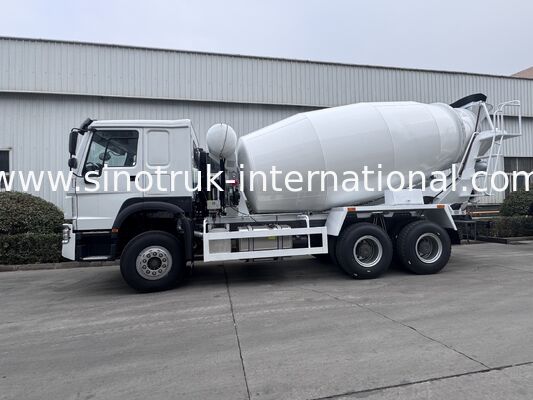

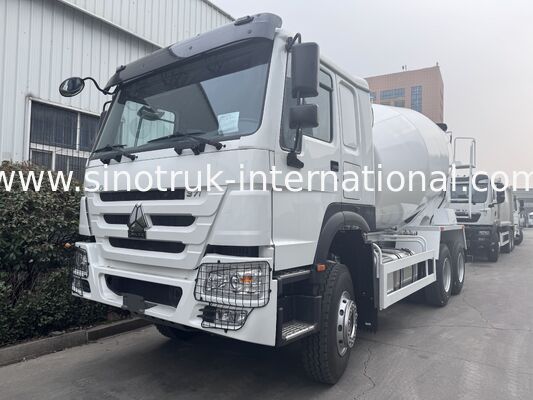

HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient

HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient

  • HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient
  • HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient
  • HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient
  • HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient
HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient
جزئیات محصول:
محل منبع: چین
نام تجاری: SINOTRUK HOWO
گواهی: ISO/3C/BV/IFA/SGS
شماره مدل: ZZ1257V3247B1
پرداخت:
مقدار حداقل تعداد سفارش: 1 واحد
قیمت: USD47500-USD48000/UNIT)negotiation
جزئیات بسته بندی: برهنه یا اپیلاسیون در رورو یا کشتی فله
زمان تحویل: 25 روز کاری پس از دریافت پیش پرداخت خود
شرایط پرداخت: L/C، T/T، وسترن یونیون
قابلیت ارائه: 2000 واحد در ماه
مخاطب
توضیحات محصول جزئیات
نام محصول: کامیون میکسر بتن مدل: ZZ1257V3247B1
نوع درایو: LHD 6X4 استاندارد انتشار: یورو 2
موتور: WD615.47.371HP ظرفیت بدنه مخزن: 10cbm
برجسته کردن:

10CBM concrete mixer truck with warranty,371HP Sinotruk mixer truck 6x4,LHD concrete mixer truck stable efficient

,

371HP Sinotruk mixer truck 6x4

,

LHD concrete mixer truck stable efficient

HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient


Description:


SINOTRUK HOWO Concrete Mixer Truck 10CBM 371HP 6X4 LHD

The HOWO Concrete Mixer Truck adopts HOWO  chassis, equipped with H77L single berth cabin, exclusively for export is equipped with European 3 or Electronic common rail, EU .SINOTRUK independent research and development of engine, standard

German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16

rear axle, carrying capacity great to meet the needs of customers.


The mixing tank body is made of high strength wear-resistant steel plate, cage type mold

are integrally formed to ensure that the flange, sections of the cylinder body and

rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.

The tank body adopts the double helix blade, moderate density and taper before the

gateball symmetric stirring plate and tank mouth at the installation of blades and a

material guide vanes, resorted to materials to be more even faster.



Specification:


SINOTRUK HOWO Concrete Mixer Truck 6CBM 290HP 6X4 LHD ZZ5257GJBM3247W

Model ZZ1257V3247B1
Drive Type 6×4
Engine

WD615.47 371HP( Euro III)

In-line, water-cooled, four-stroke, supercharged and intercooled

Displacement :11.596L

Cabin HW76
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

 air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3225+1350(mm)
Overall dimension 8204×2496×3850(mm)
Tank body Capacity

10CBM

The curb weight 12800(Kg)
Gross weight 41500kg
Max. speed 102km/h
Color White, red, green, golden and so on.



Applications:


t’s suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business.


Competitive Advantage:


1) Leading technology, complete functions, excellent performance, reliable quality, easy to operate Operation.

2) Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

Uniform discharge and low residual rate.

3) Imported hydraulic pump, hydraulic motor, reducer.

4) Adopt high strength steel plate, long service life.

5) Overall structure optimization, low center of gravity, high operation efficiency.

6) Wide range of products, tank capacity of 6 ~ 18 cubic meters.

7) Choose a variety of auxiliary devices.

8) Match all concrete mixer chassis.

9) Based on strong technical support and top technology to make the truck with high

More reliable quality
10) Competitive price, cost-effective
11) Fast and efficient spare parts supply, to bring you more convenient
12) Fast delivery time, we can accurately and reasonably arrange production according to your needs soon

13) Professional import and export transaction procedures make customs clearance more efficient


HOWO SINOTRUK Concrete Mixer Truck 10CBM 371HP 6X4 LHD Stable and efficient 0
