محل منبع: | چین |
نام تجاری: | SINOTRUK |
گواهی: | ISO/3C/BV/IFA/SGS |
شماره مدل: | ZZ1267N4617B1 |
مقدار حداقل تعداد سفارش: | 1 دور |
---|---|
قیمت: | قابل مذاکره |
جزئیات بسته بندی: | اپیلاسیون در کشتی فله ، کشتی رورو ، کانتینر |
زمان تحویل: | 10-30 روز کاری |
قابلیت ارائه: | 3000 واحد در ماه |
نام محصول: | کامیون مخزن نفت | مدل: | ZZ1267N461JB1 |
---|---|---|---|
نوع درایو: | LHD 4x2 | استاندارد انتشار: | یورو 2 |
موتور: | WD615.87، 290 اسب بخار | ظرفیت بدنه مخزن: | 16-20CBM |
برجسته کردن: | HOWO oil tank truck 4x2,SINOTRUK fuel tank Euro2,LHD oil tank truck white red,SINOTRUK fuel tank Euro2,LHD oil tank truck white red |

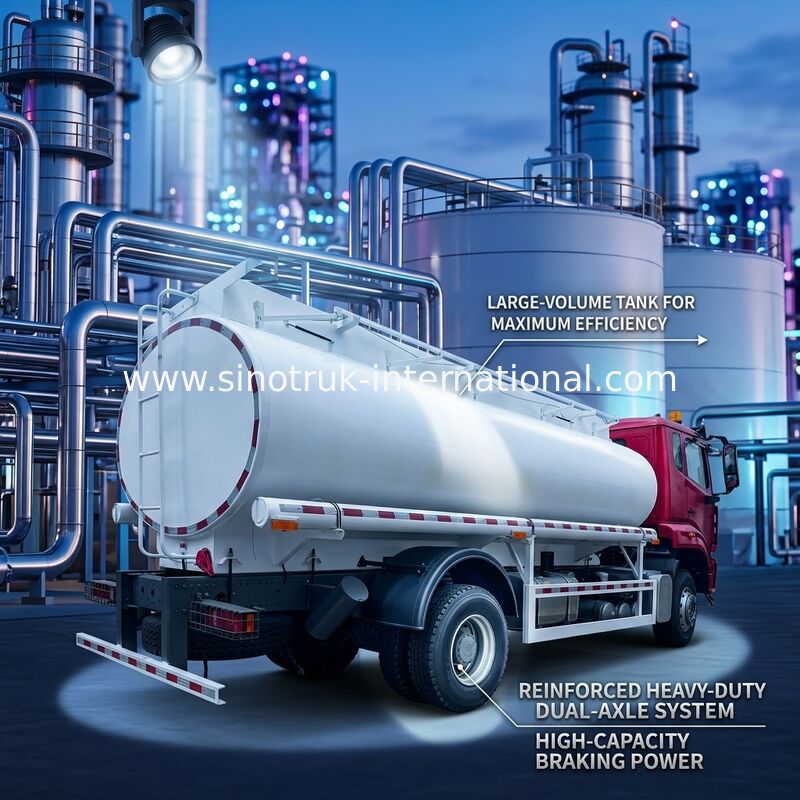

SINOTRUK HOHAN New HOWO Oil Truck Fuel Tank 4x2 Lhd Euro2 White and Red
Description:
Howo 4x2 tank trucks have a variety of refueling or oil transport functions depending on the application and environment.
It has the functions of oil absorption, oil pump, various oil distribution and oil distribution.
The special part of the tank car is composed of tank body, power output, transmission shaft, gear pump, pipeline, etc
Network system, etc. The pipe network system consists of an oil pump, a three-way four-position ball valve, and a
Two-way ball valves, filters and piping.
Specification:
SINOTRUK HOHAN New HOWO Oil Truck Fuel Tank 4x2 Lhd Euro2 White and Red |
|
Chassis Model | ZZ1267N461JB1 |
Drive Type | 4×2 |
Engine | WD615.87, 290HP |
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW19710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 12.00R20, Radial tyre |
Wheel base | 4600+1350(mm) |
Capacity of tank body | 16-20CBM |
Thickness of tank body | 5mm,With 5 cabin |
Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension | 9200×2500×3150mm |
The curb weight | 11940(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage.
Competitive Advantage:
1. Through the crash test, driving safety guarantee: steel frame structure, frame safety protection safety four-level safety protection system, through the high standard crash test and can normally leave the test, can withstand two tons of swing arm impact test.
2. Chassis parts with reliable performance of international supporting products.
3. Car interior: humanized interior layout, high-end atmosphere showing taste.
4. The vehicle adopts CAN bus control technology, which improves the reliability and flexibility of the system.
5. The cab is safer, more powerful, more carrying capacity, and more cost-effective than the same model.
