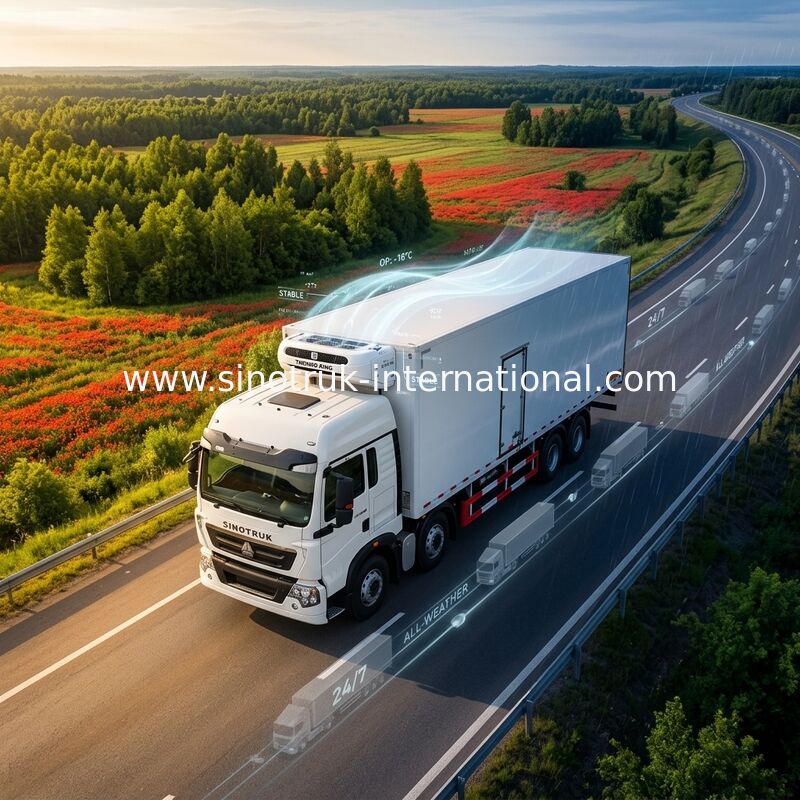

8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods

8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods

  • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
  • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
  • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
  • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
جزئیات محصول:
Place of Origin: China
نام تجاری: SINOTRUK
گواهی: ISO/3C/BV/IFA/SGS
Model Number: ZZ1317N3861W
پرداخت:
Minimum Order Quantity: 1 Unit
قیمت: USD48000-USD48500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
مخاطب
توضیحات محصول جزئیات
Min. حداقل Temperature درجه حرارت: -18 درجه سانتیگراد مدل: ZZ1317N3861W
نام محصول: کامیون یخچال دار نوع درایو: LHD 8X4
استاندارد انتشار: یورو 2 موتور: WD615.69, 336 اسب بخار
ظرفیت بارگیری: 40 تن
برجسته:

کامیون جعبه یخچال دار

,

کامیون مواد غذایی یخچال دار

,

کامیون یخچال دار مواد غذایی منجمد

SINOTRUK HOWO 8×4 Refrigerated Trucks And Vans 40 Ton for carrying Frozen Foods



Description:



SINOTRUK HOWO 8×4 Refrigerated Trucks And Vans 40 Ton for carrying Frozen Foods

The "sandwich" structure (low thermal conductivity), good thermal

insulation effect. Using unsaturated polyester resin as binder, plus a cushion, with

rigid polyurethane foam insulation, heat conduction low coefficient, high strength. High

strength plate bonding, high sealing glue, forming a whole.



The structure of the refrigerator car is dominant in the domestic market, our company is using the technology of refrigerated trucks.



Refrigerated truck is one kind of closed van truck which is used to transport the frozen

or fresh goods,  was fitted with the refrigerating unit device and polyurethane thermal

insulation van and it is refrigeration special use transport truck, usually used for

transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc..







Specification:



Refrigerated Trucks SINOTRUK 8×4 LHD And Vans 40 Ton for carrying Frozen Foods

Chassis Model

ZZ1317M3861W

Drive Type

8×4

Engine

WD615.69, 336HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

1×HF7 ( 7 Tons)

Driving Axle

HC16, 16Tons

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20,12.00R20,12.00R24 Radial tire, 295/80R22.5, Tubeless tire

Wheel base

1800+3800+1350(mm)

Van board material

polymer composites

Dimension of cargo body

49CBM(8600*2300*2450mm)

Refrigerator

XL-300,  -18C0

Overall dimension

11190×2500×3650(mm)

The curb weight

13060(Kg)

Gross weight

31000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.



Competitive Advantage:



1)with all kinds of truck model, which can fulfill your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high

quality and more reliable

4) Our company's production of circular easy brand refrigerator car introduced Italy,

Germany, the United States overall polyester foam technology, and high strength fiber

plastic and other material  manufacturing technology and equipment

5) Refrigeration, heat preservation car body with light, high strength, good heat

insulation performance, high temperature stability, no pollution, oxidation, easy

maintenance, but also has low noise, low energy consumption, low failure rate, food

preservation effect is good and so on a series of advantages
6) A lot of technical indicators and the world's advanced level is close to the fully

closed polyurethane plate bonded glass steel structure, this product is light weight,

low heat leakage.

7) so that our company refrigeration, heat preservation technology level basic reached

world advanced  water level.

8) competitive price, cost-effective

9) quick and efficient spare parts supply bring you more convenient

10) fast delivery time, we can arange production according to your needs exactly and quickly

11) professional import and export dealing precedure, make customs clearance more high efficiency



8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods 08×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods 1
